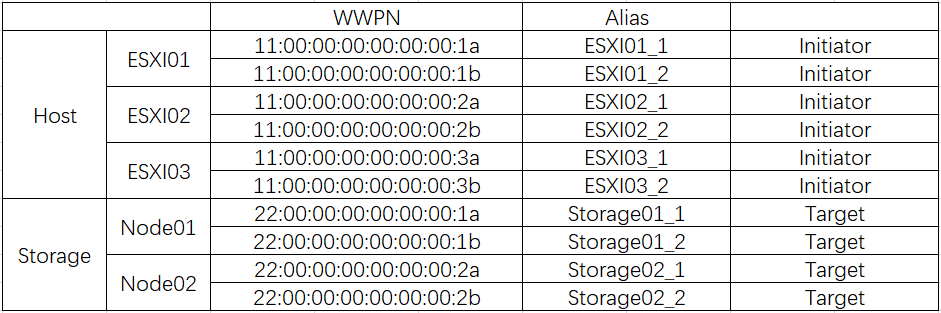

接口规划

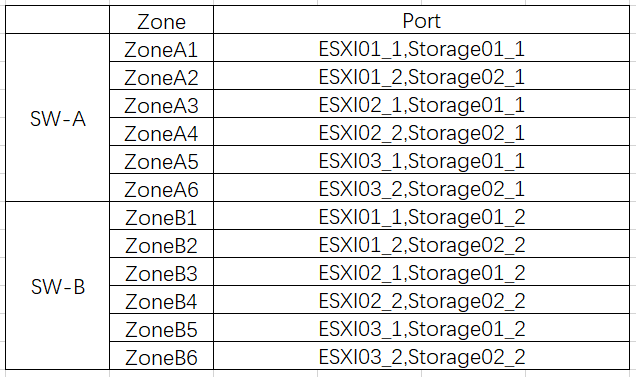

配置规划


新建ALIAS

Client
    alicreate "ESXI01_1","11:00:00:00:00:00:00:1a"
    alicreate "ESXI01_2","11:00:00:00:00:00:00:1b"

    alicreate "ESXI02_1","11:00:00:00:00:00:00:2a"
    alicreate "ESXI02_2","11:00:00:00:00:00:00:2b"

    alicreate "ESXI03_1","11:00:00:00:00:00:00:3a"
    alicreate "ESXI03_2","11:00:00:00:00:00:00:3b"
Storage
    alicreate "Storage01_1","22:00:00:00:00:00:00:1a"
    alicerete "Storage01_2","22:00:00:00:00:00:00:1b"

    alicreate "Storage02_1","22:00:00:00:00:00:00:2a"
    alicreate "Storage02_2","22:00:00:00:00:00:00:2b"

SAN-A

新建ZONE
    zonecreate "zoneA1","ESXI01_1;Storage01_1"
    zonecreate "zoneA2","ESXI01_2;Stoeage02_1"

    zonecreate "zoneA3","ESXI02_1;Storage01_1"
    zonecreate "zoneA4","ESXI02_2;Storage02_1"

    zonecreate "zoneA5","ESXI03_1;Storage01_1"
    zonecreate "zoneA6","ESXI03_2;Storage02_1"
创建CFG
    cfgcreate "CFG_SWA","zoneA1,zoneA2,zoneA3,zoneA4,zoneA5,zoneA6" / 创建CFG文件
    cfgenable "CFG_SWA" / 启用CFG文件
    cfgseve / 保存CFG文件

SAN-B

新建ZONE
    zonecreate "zoneB1","ESXI01_1;Storage01_2"
    zonecreate "zoneB2","ESXI01_2;Storage02_2"

    zonecreate "zoneB3","ESXI02_1;Storage01_2"
    zonecreate "zoneB4","ESXI02_2;Storage02_2"

    zonecreate "zoneB5","ESXI03_1;Storage01_2"
    zonecreate "zoneB6","ESXI03_2;Storage02_2"
创建CFG
    cfgcreate "CFG_SWB","zoneB1,zoneB2,zoneB3,zoneB4,zoneB5,zoneB6" / 创建CFG文件
    cfgenable "CFG_SWB" / 启用CFG文件
    cfgseve / 保存CFG文件
